USEPA approved Ambient Air Analyzers for the measurement of CO, S02' NOx, O2, SPM RSPM in the ambient environment. Compact system ideal for measurement agencies.
Operates on the principle of gas filter correlation method, Range: 0-5, 0-1 0, 0-20, 0-50, 0-1 00 ppm.

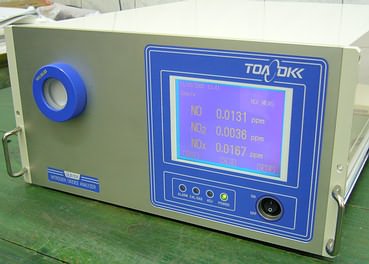

NOx Analyzer :
Operates on the principle of chemiluminescence method, Range: 0-0.1, 0-0.2, 0-0.5, 0-1.0, 0-2.0 ppm.
S02 Analyzer :
Operates on the principle of UV fluorescence method, Range: 0-0.05, 0-0.1,0-0.2,0-0.5,0-1.0 ppm.
Operates on the principle ofUV photometry method, Range: 0-0.1, 0-0.2, 0-0.5, 0-1.0 ppm.
Operates on the principle of Gas Chromatographic method, HC is separated into Methane and Non-Methane Hydrocarbons. Hygrogen Flame Ionization Detector automatically measures Methane and Non-Methane Hydrocarbons. Range 0-5,0-10, 0-20,0-50ppmC.

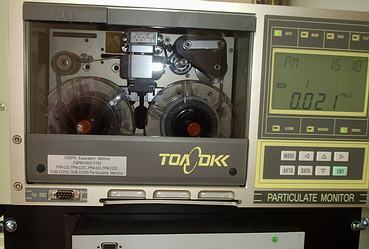

Operates on the principle of BataRay Attenuation. It measures particle mass without the effects of shape, size or color of the suspended particulate matter. The equipment includes a PM I 0 inlet and PM2.5 WINS Impactor.
TSP/PM2.5 /PM4 Analyzers
All analyzers are integrated in a 19" rack cabinet and connect to powerful data acquisition system which stores more than 5 years data and software with graphical presentations.
